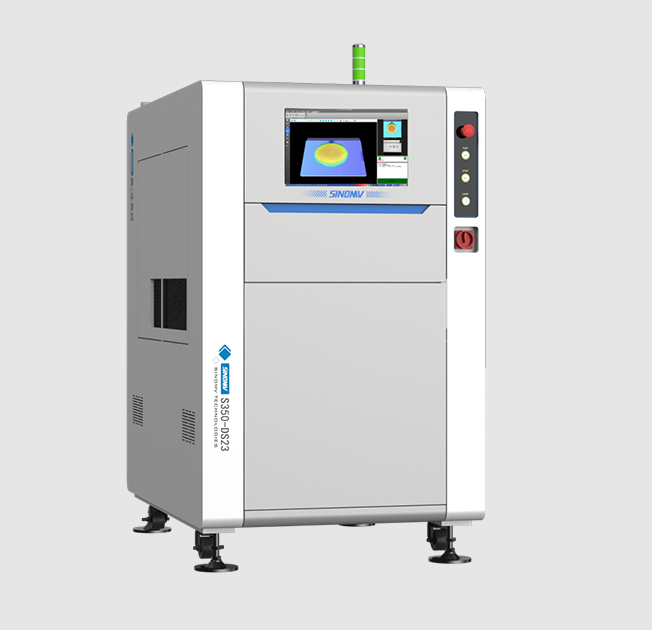

Product Overview

The S350-DS23 Glue Path AVI Inspection Machine is designed for automated adhesive inspection in electronic manufacturing and precision assembly processes. It combines industrial cameras, image processing technology and intelligent inspection software to analyze glue paths during production.

In industries where adhesive accuracy directly affects product performance, problems such as insufficient glue, broken glue paths, incorrect positioning or uneven dispensing can lead to assembly failure. The S350-DS23 helps manufacturers identify these issues earlier and maintain stable production quality.

The system is suitable for PCB assemblies, electronic modules, automotive components, display products and other applications requiring accurate adhesive control.

Main Features

High-Precision Glue Path Inspection

The S350-DS23 can inspect adhesive path position, continuity and appearance. It helps detect common dispensing problems and provides stable inspection results for production lines.

Industrial Vision Technology

The machine uses high-speed industrial imaging technology to capture detailed glue path information. Combined with inspection algorithms, it can analyze adhesive conditions automatically and reduce manual checking errors.

Single-Side Glue Inspection Solution

The S350-DS23 is designed for single-side glue path inspection applications. It provides an efficient solution for production processes where adhesive quality needs to be checked on one working surface.

Visual Programming

The inspection area can be configured through a visual programming interface. Operators can define glue areas, non-glue areas and inspection regions according to different product structures.

Optional 3D Inspection Function

The system can support optional 3D inspection technology for applications requiring glue height and profile measurement. This helps improve control of adhesive volume and dispensing consistency.

Mixed Product Inspection Support

The machine can support different product programs and inspection requirements, making it suitable for flexible production environments with multiple product models.

Automatic Conveyor Integration

The S350-DS23 supports inline production integration. It can connect with dispensing equipment and production lines to achieve continuous inspection without manual transfer.

Quality Data Management

Inspection results can be recorded for quality analysis and process improvement, helping manufacturers establish a more complete production traceability system.

Detectable Defects

Insufficient glue

Excessive glue

Broken glue path

Glue offset

Glue overflow

Uneven glue distribution

Abnormal glue width

Residual glue

Adhesive contamination

Incorrect dispensing position

Applicable Products

PCB assemblies

FPC assemblies

Electronic modules

Display modules

Automotive electronic components

Sensors

Camera modules

Medical device components

Precision bonded parts

Typical Applications

Electronics Manufacturing

The S350-DS23 helps inspect adhesive paths on PCB assemblies, electronic modules and precision components to ensure stable bonding performance.

Automotive Electronics

It can inspect adhesive application on automotive electronic components where reliability and consistency are important.

Consumer Electronics

The system is suitable for adhesive inspection in compact electronic products such as display modules, wearable devices and smart components.

Medical Devices

It supports adhesive quality inspection for medical components that require accurate bonding processes.

Precision Assembly

The machine is suitable for manufacturing processes where adhesive placement accuracy directly affects product performance.

Technical Information

Product Type: Glue Path AVI Inspection Machine

Model: S350-DS23

Inspection Method: Automated visual inspection

Camera System: High-speed industrial camera

Lighting System: LED light source

Motion Mode: X/Y-axis precision servo platform

Detection Mode: 2D inspection, optional 3D inspection

Inspection Content: Glue path position, continuity, width and surface condition

Programming Method: Visual programming

Inspection Area: Customizable glue and inspection regions

Operation Mode: Inline automated production

Data Function: Inspection records and quality analysis support

Application Industries: Electronics, automotive, medical devices and precision manufacturing

Application Value

Adhesive quality is an important factor affecting product reliability. Incorrect glue application may cause weak bonding, sealing failure or product performance problems.

The S350-DS23 helps manufacturers replace manual glue checking with automated visual inspection. It provides more consistent inspection standards and helps production teams discover problems earlier.

By integrating vision inspection into the manufacturing process, companies can improve Production Efficiency, reduce rework and build a more stable adhesive quality management system.

Why Choose the S350-DS23

The S350-DS23 is a practical glue path inspection solution for manufacturers that need reliable adhesive quality control. It combines industrial vision, intelligent inspection software and automated production integration.

Compared with manual inspection methods, the system provides faster inspection speed, more consistent results and better defect traceability. It is suitable for companies looking to improve adhesive process control in modern manufacturing environments.

SINOMV Technologies focuses on laser technology, image vision and intelligent manufacturing solutions. The S350-DS23 helps customers achieve more efficient and reliable production quality management.

FAQ

Q1: What is the S350-DS23 Glue Path AVI Inspection Machine used for?

A1: It is used for automated inspection of adhesive paths during production, helping manufacturers check glue position, continuity and quality.

Q2: What glue defects can the machine detect?

A2: It can detect insufficient glue, excess glue, broken glue paths, glue offset, overflow, uneven dispensing and adhesive contamination.

Q3: Can the machine inspect different product models?

A3: Yes. The visual programming system allows different inspection programs to be created for different product structures.

Q4: Does the S350-DS23 support inline production?

A4: Yes. It can be integrated into Automated Production Lines with conveyor systems and related manufacturing equipment.

Q5: Can it measure glue height?

A5: Yes. Optional 3D inspection functions can be added for applications requiring glue height and profile analysis.

Q6: What industries can use this equipment?

A6: It is widely used in electronics manufacturing, automotive components, medical devices, display modules and precision assembly industries.

Q7: What is the advantage compared with manual inspection?

A7: Automated AVI inspection provides more stable results, reduces human inspection differences and improves production quality consistency.

Q8: Can inspection data be recorded?

A8: Yes. Inspection results can be recorded for quality analysis, process improvement and production traceability.
