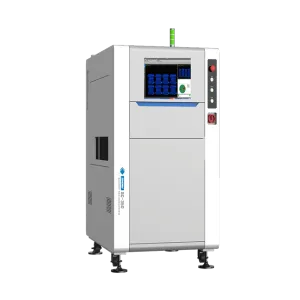

The SC600 Online Coating AVI Inspection Machine is developed for manufacturers that need reliable, non-contact and automated coating quality inspection. It is mainly used in PCB coating inspection, electronic assembly protection coating inspection and industrial surface coating quality control.
In coating production, manual inspection can easily be affected by fatigue, light conditions and judgment differences. The SC600 uses machine vision and intelligent image analysis to inspect coating areas automatically, helping factories find defects earlier and reduce the risk of defective products flowing into the next process.
The equipment can be connected with Automated Production Lines through conveyor transfer. It supports online inspection after coating or curing processes, making it suitable for continuous production environments.
The SC600 can inspect common coating problems, including missing coating, excess coating, bubbles, particles, scratches, contamination, uneven coating and coating edge deviation. It helps operators quickly identify abnormal coating conditions during production.
The machine uses an industrial camera and stable optical system to capture clear coating images. With suitable lighting configuration, it can improve defect visibility on different substrate surfaces and coating materials.
For conformal coating and UV-sensitive coating materials, UV lighting can help highlight the coated area. This makes it easier to distinguish coated and uncoated regions, improving inspection accuracy.
The inspection area can be set through visual programming. Operators can define coating areas, non-coating areas and inspection regions according to product layout. This is useful for PCB boards with complex components and different coating paths.
The system can support different inspection shapes such as polygons, rectangles and circles. This allows flexible inspection settings for irregular coating regions, component avoidance areas and special product structures.
The SC600 is designed for inline production. The automatic conveyor system supports board feeding and discharging, reducing manual handling and improving production continuity.
The conveyor width can be adjusted according to board size, making the machine suitable for different PCB and electronic product specifications. This helps reduce changeover time between production batches.
The system can record inspection results and generate statistical analysis data. This helps factories review defect trends, improve process control and support quality traceability.
PCB boards
FPC flexible circuit boards
Electronic control boards
Conformal coated circuit boards
Automotive electronic modules
Industrial control boards
Consumer electronic assemblies
Coated plastic or metal components
Missing coating
Excess coating
Coating overflow
Bubbles
Foreign particles
Dust contamination
Uneven coating
Edge offset
Scratches
Residual coating
Component contamination
Coating path deviation
PCB conformal coating inspection
Electronic assembly coating quality control
Automotive electronics coating inspection
Industrial control board surface inspection
UV coating defect detection
FPC protection coating inspection
Coating process verification
Inline AVI quality inspection
Production traceability inspection
Product Type: Online coating AVI inspection machine
Inspection Method: Automatic visual inspection
Camera System: Industrial vision camera configuration
Lighting System: UV lighting or customized optical lighting
Transfer Method: Automatic conveyor track
Width Adjustment: Automatic width adjustment available
Programming Method: Visual programming
Inspection Area Setting: Polygon, rectangle, circle and customized inspection regions
Data Output: Inspection result recording and SPC statistical analysis
Operation Mode: Inline automated production
Application Materials: PCB, FPC, electronic boards, coated substrates and related industrial parts
The SC600 helps factories improve coating inspection from manual judgment to automated visual quality control. It can inspect coating status in real time and provide more consistent results than traditional visual checking.
For PCB and electronic manufacturing, coating quality directly affects product reliability. Missing coating may reduce protection performance, while excessive coating or contamination may affect later assembly or product appearance. By using the SC600, manufacturers can detect these problems earlier and adjust the coating process in time.
The machine also supports production data management. Inspection results can be recorded for later analysis, helping quality teams understand defect distribution, coating stability and process changes.
The SC600 is suitable for manufacturers that need a practical and automated coating inspection solution for medium-size production lines. It combines machine vision, stable lighting, automatic transfer and data analysis to improve inspection efficiency and reduce dependence on manual checking.
For factories upgrading from manual coating inspection, the SC600 can help reduce missed defects, improve inspection consistency and support smarter quality management. It is a reliable choice for PCB manufacturing, automotive electronics, industrial control boards and other coated electronic products.
SINOMV Technologies focuses on laser technology, image vision and intelligent manufacturing solutions. The SC600 Online Coating AVI Inspection Machine reflects this experience by combining visual inspection equipment with production process control for modern automated manufacturing.
A1: It is mainly used for automated coating quality inspection on PCB, FPC and electronic assemblies. It can detect coating defects and help improve production quality control.
A2: It can detect missing coating, excess coating, bubbles, foreign particles, dust, scratches, uneven coating, edge deviation and coating path abnormalities.
A3: Yes. The SC600 is suitable for PCB conformal coating inspection and can use UV lighting to help identify coated and uncoated areas.
A4: Yes. The SC600 supports automatic conveyor transfer and can be integrated into automated production lines.
A5: Yes. Operators can set coating areas, non-coating areas and detection areas through visual programming. Polygon, rectangle and circle regions can be supported.
A6: Yes. The system can record inspection results and support SPC statistical analysis, helping factories track quality trends and improve process control.
A7: It is suitable for PCB manufacturing, automotive electronics, industrial control boards, consumer electronics, coated components and other electronic assembly production fields.
A8: Automated AVI inspection provides more stable and consistent results. It can reduce manual judgment errors, improve inspection speed and support long-term quality traceability.
