The SC900 Online Coating AVI Inspection Machine is developed for electronic manufacturers that need stable and efficient conformal coating inspection during automated production. It is mainly used after coating or curing processes to inspect whether the coating area, coating edge and coating quality meet production requirements.
In PCB and PCBA manufacturing, coating quality directly affects product protection, long-term reliability and process consistency. Manual inspection can be slow and easily affected by operator fatigue, lighting conditions and different judgment standards. The SC900 uses machine vision and image processing technology to perform automatic coating inspection, helping factories reduce missed defects and improve inspection consistency.
The system is suitable for PCB boards, assembled circuit boards, mixed panels, automotive electronic boards, industrial control boards and other coated electronic products.
The SC900 supports double-head and double-side inspection, allowing the system to check both sides of the board more efficiently. This is especially useful for products that require coating control on front and back surfaces.
The machine can be used for assembled panel inspection and mixed-panel production. It helps factories manage different board layouts, multiple product types and complex coating areas within the same production environment.
The system can detect common coating problems such as missing coating, excessive coating, overflow, bubbles, foreign particles, coating edge deviation, uneven coating and contamination. It helps quality teams identify process issues before defective boards move to the next stage.
The SC900 is designed for inline production. With automatic conveyor transfer, it can connect with upstream and downstream equipment to support continuous board inspection without manual handling.
Operators can set different inspection areas according to product layout. Coating areas, non-coating areas, component avoidance zones and special inspection regions can be defined to match real production needs.

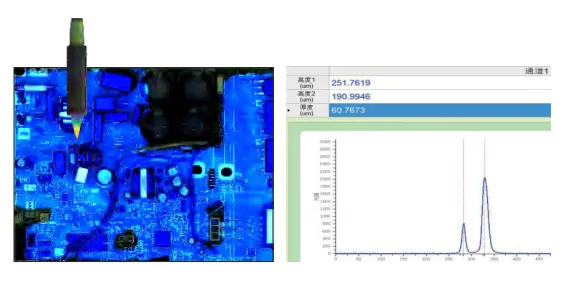

The machine uses industrial vision technology to capture coating images and analyze coating quality. The inspection result can help operators quickly locate defect positions and adjust the coating process in time.
The SC900 is suitable for high-volume production lines that require repeatable and stable inspection results. It helps reduce quality variation caused by manual inspection and supports more standardized quality control.
Inspection data can be recorded for quality review and process analysis. This helps factories build a traceable coating inspection process and improve long-term production management.
PCB boards
PCBA assemblies
FPC flexible circuit boards
Automotive electronic boards
Industrial control boards
Consumer electronic boards
Conformal coated circuit boards
Mixed-panel products
Assembled electronic modules
Coated industrial components
Missing coating
Excess coating
Coating overflow
Bubbles
Foreign particles
Dust contamination
Uneven coating
Coating edge deviation
Scratches
Residual coating
Component contamination
Abnormal coating path
PCB conformal coating inspection
PCBA coating quality control
Automotive electronics coating inspection
Industrial control board inspection
Mixed-panel coating inspection
Assembled panel coating verification
UV coating defect detection
Electronic module coating inspection
Inline AVI quality inspection
Production traceability inspection
Product Type: Online coating AVI inspection machine
Inspection Method: Automated visual inspection
Inspection Structure: Double-head and double-side inspection
Transfer Method: Automatic conveyor track
Application Direction: PCB, PCBA, assembled panels and mixed-panel coating inspection
Inspection Content: Coating area, coating edge, coating uniformity and coating defect detection
Defect Types: Missing coating, overflow, bubbles, foreign particles, uneven coating and contamination
Operation Mode: Inline automated production
Inspection Area Setting: Customizable coating and non-coating areas
Data Function: Inspection result recording and quality traceability support
Application Industries: Electronics manufacturing, automotive electronics, industrial control, consumer electronics and coated circuit board production
The SC900 helps manufacturers move from manual coating inspection to automated visual quality control. By using online inspection, factories can detect coating defects earlier and reduce the risk of defective products entering assembly, testing or shipment stages.
For electronic products used in automotive, industrial control and high-reliability applications, coating quality is important for moisture resistance, dust protection and long-term product stability. The SC900 supports more consistent inspection standards and helps quality teams monitor coating process changes more effectively.
Its double-head and double-side inspection structure also improves inspection efficiency for products that require both-side coating verification. For mixed-panel and assembled panel production, the machine provides better flexibility than simple single-board inspection methods.
The SC900 is suitable for factories that need a higher-level coating inspection solution for Automated Production Lines. It supports double-side inspection, mixed-panel inspection and inline conveyor integration, making it practical for modern PCB and PCBA manufacturing.
For manufacturers upgrading from manual visual inspection, the SC900 can help reduce labor dependence, improve defect detection consistency and support production data management. It is a suitable choice for coating inspection in electronics, automotive electronics, industrial control boards and other high-reliability product fields.
SINOMV Technologies focuses on laser technology, image vision and intelligent manufacturing solutions. The SC900 Online Coating AVI Inspection Machine combines visual inspection equipment with automated production needs, helping customers build a more reliable coating quality control process.
A1: It is mainly used for automated coating quality inspection on PCB, PCBA and electronic assemblies. It helps detect coating defects and improve production quality control.
A2: It can detect missing coating, excess coating, overflow, bubbles, foreign particles, dust contamination, uneven coating, scratches and coating edge deviation.
A3: Yes. The SC900 supports double-head and double-side inspection, making it suitable for products that require coating verification on both sides.
A4: Yes. The machine can be used for assembled panels and mixed-panel production, helping factories manage different board layouts and coating areas.
A5: Yes. The SC900 supports automatic conveyor transfer and can be connected with production line equipment for inline inspection.
A6: It is suitable for PCB manufacturing, PCBA assembly, automotive electronics, industrial control boards, consumer electronics and other coated electronic product production.
A7: Yes. Inspection results can be recorded to support quality review, defect tracking and production traceability.
A8: AVI inspection provides more stable and consistent results. It reduces manual judgment differences, improves inspection speed and helps factories build a more reliable coating quality control process.
